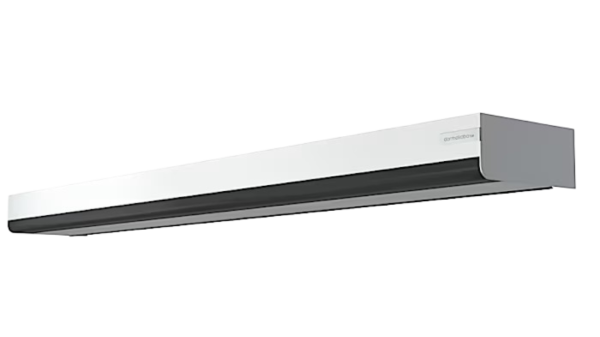

DORMAKABA ES 400 PRO
The dormakaba ES 400 Pro is a state-of-the-art automatic sliding door operator engineered for heavy-duty performance, high traffic capacity, and modern building requirements. As part of the Proline series, it brings together advanced drive technology, unsurpassed reliability, and flexible functionality — making it ideal for large commercial, institutional, or high-traffic public buildings.
Technical Features
- Maximum Door Capacity: 250 kg per Door Leaf (Single-leaf) and 200 kg per Door Leaf (Double-leaf)
- In Accordance with EN 16005 / DIN 18650
- Operating Noise: <47 dB (A)
- Opening Speed (Adjustable in Increments): 10 – 90 cm/s
- Closing Speed (Adjustable in Increments): 10 – 90 cm/s
- Power Consumption: 180 W
- Degree of Protection (Ingress Protection): IP 20
- Temperature Range: –20 °C to +60 °C
- Permissible Air Humidity (Relative) (Non-condensing): Max. 93%
- Equipped with 5-position Program Switch
- Equipped with Emergency Battery Backup
- Equipped with Integrated Locking Device
