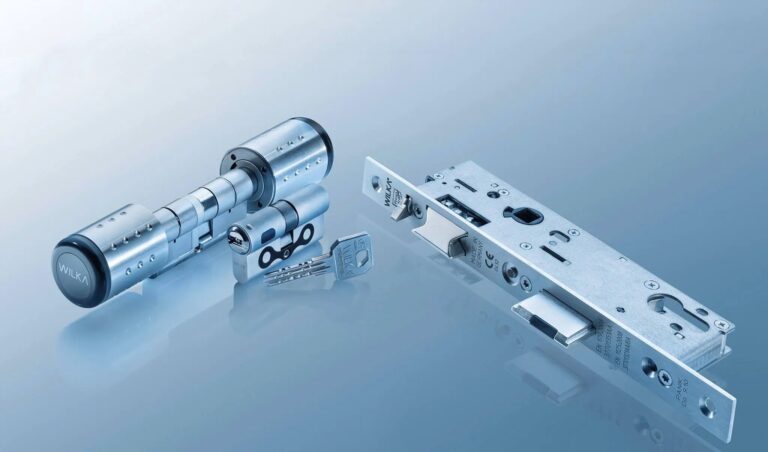

WILKA Locksets
WILKA locksets stand for the highest standard of security and durability. Manufactured in the German center of production for door hardware in Velbert, WILKA’s solutions offer versatile and modern locking systems rooted in enduring product quality to meet individual security requirements.

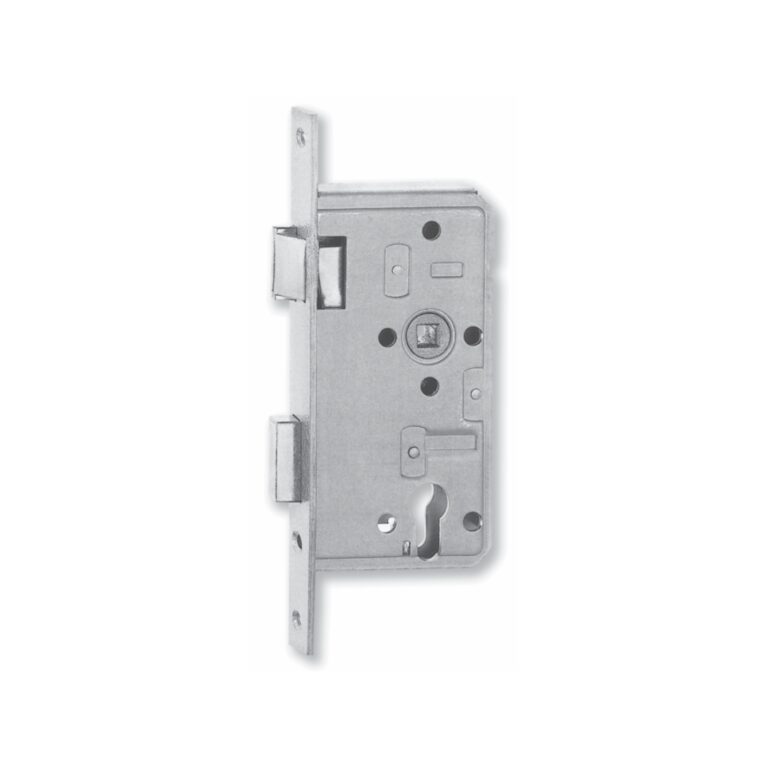

WILKA Lockcase 1490.55 Technical Features
- Suitable for Swing Wooden and Steel Doors with Lever Handles
- Handed or Non Reversible (DIN Right or DIN Left)
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Spring Made of Hardened Steel
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 55 mm
- Compatible with Profile Cylinders

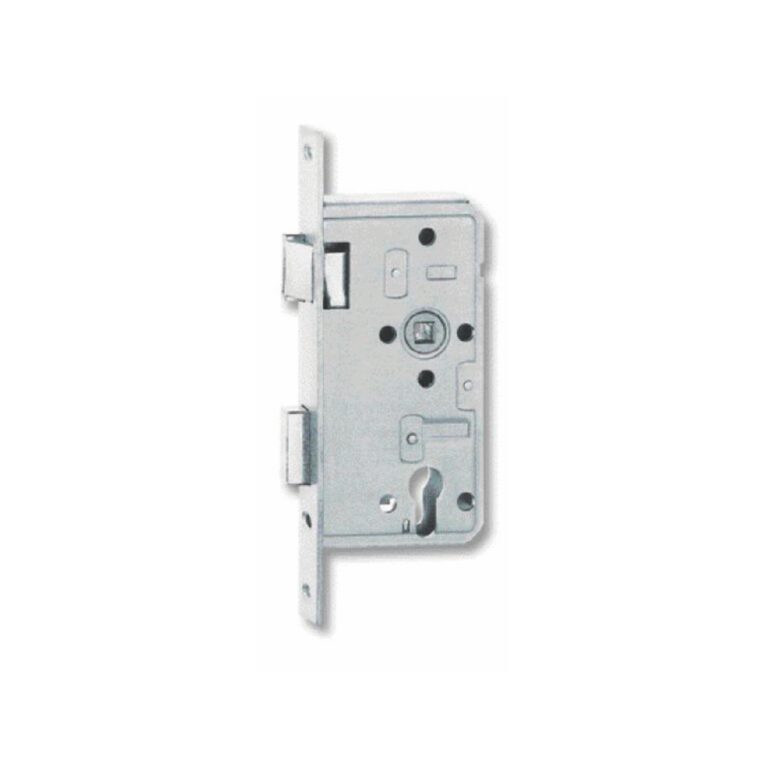

WILKA Lockcase 1490.65 Technical Features
- Suitable for Swing Steel Doors with Lever Handles
- Handed or Non Reversible (DIN Right or DIN Left)
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Spring Made of Hardened Steel
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 65 mm
- Compatible with Profile Cylinders

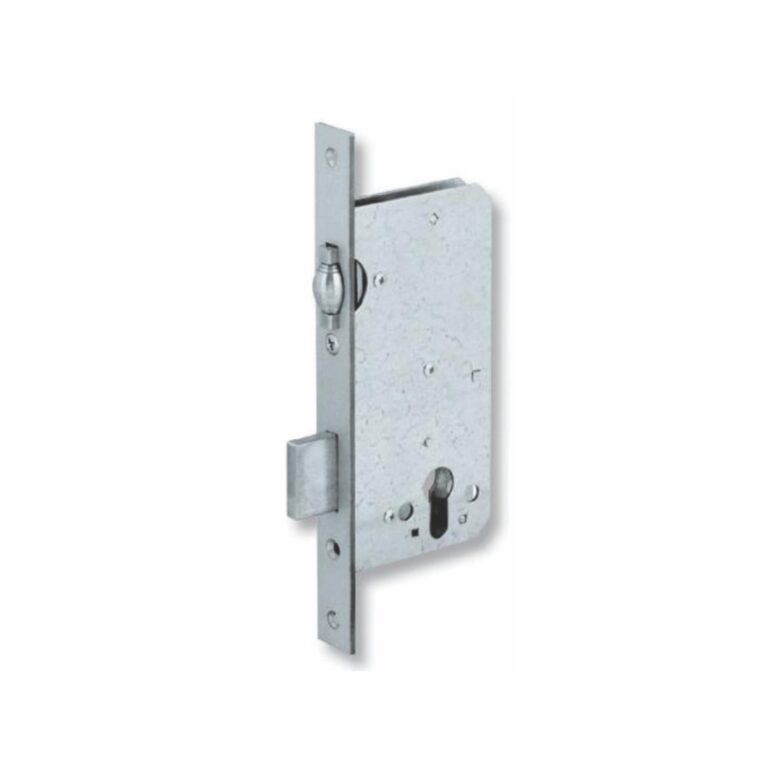

WILKA Lockcase 1492.55 Technical Features
- Suitable for Swing Wooden and Steel Doors with Pull Handles
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Spring Made of Hardened Steel
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 55 mm
- Compatible with Profile Cylinders

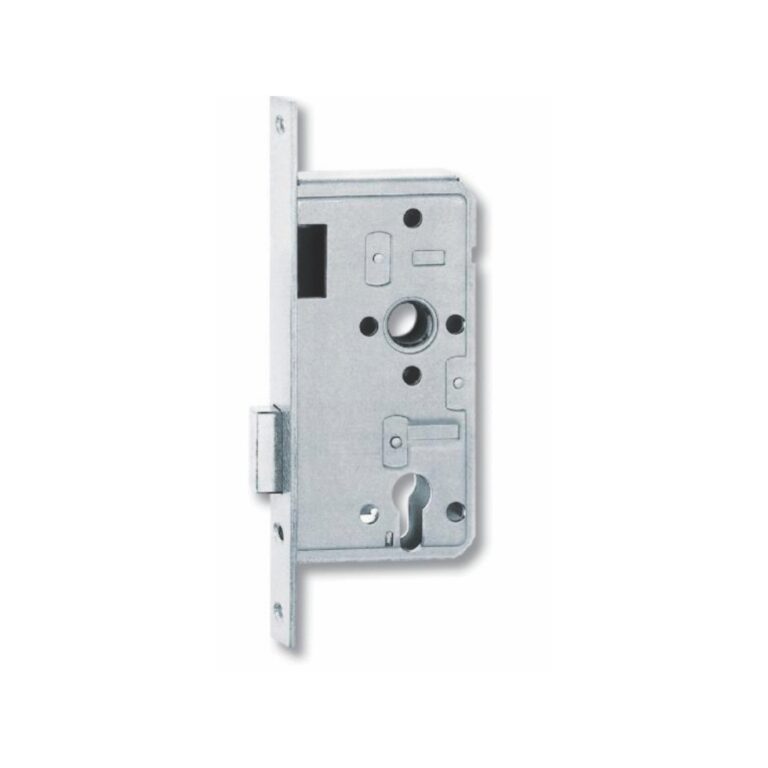

WILKA Lockcase 1797.55 Technical Features
- Suitable for Swing Wooden and Steel Doors with Pull Handles
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 55 mm
- Compatible with Profile Cylinders

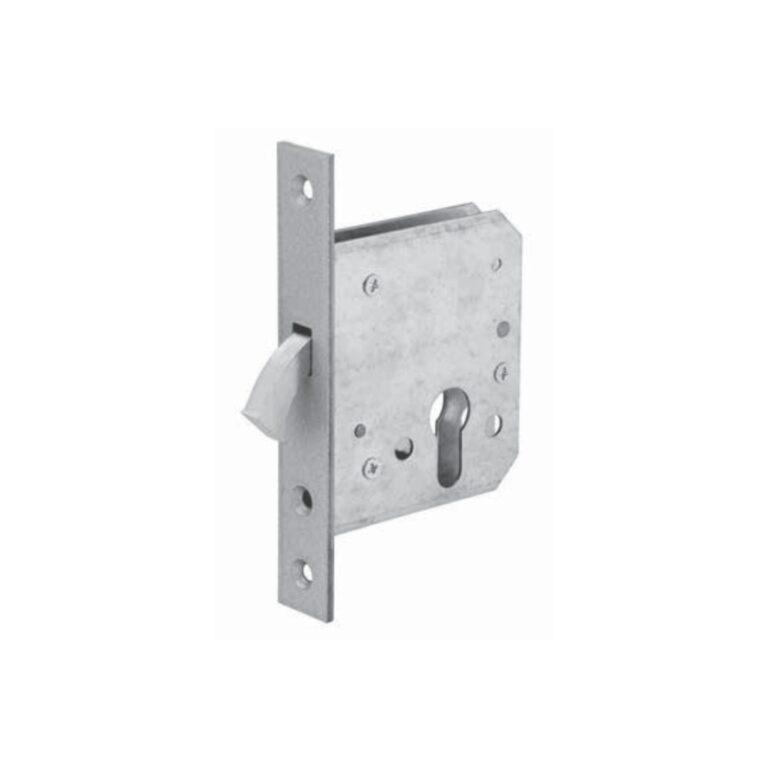

WILKA Lockcase 1450.55 Technical Features
- Suitable for Sliding Wooden and Steel Doors
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 55 mm
- Compatible with Profile Cylinders

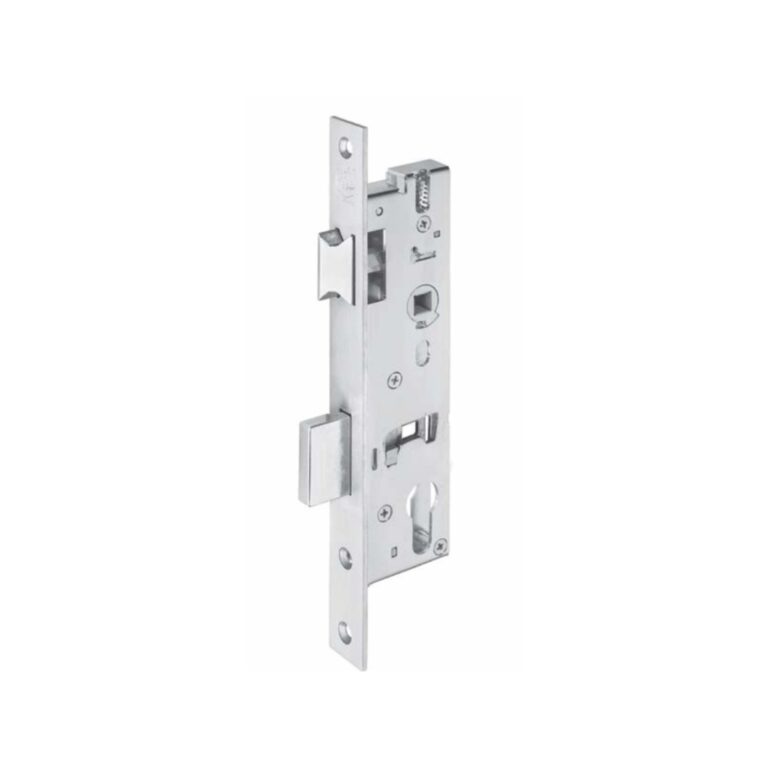

WILKA Lockcase 1438.30 Technical Features
- Suitable for Swing Aluminium Doors with Lever Handles
- Handed or Non Reversible (DIN Right or DIN Left)
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Spring Made of Hardened Steel
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 30 mm
- Compatible with Profile Cylinders

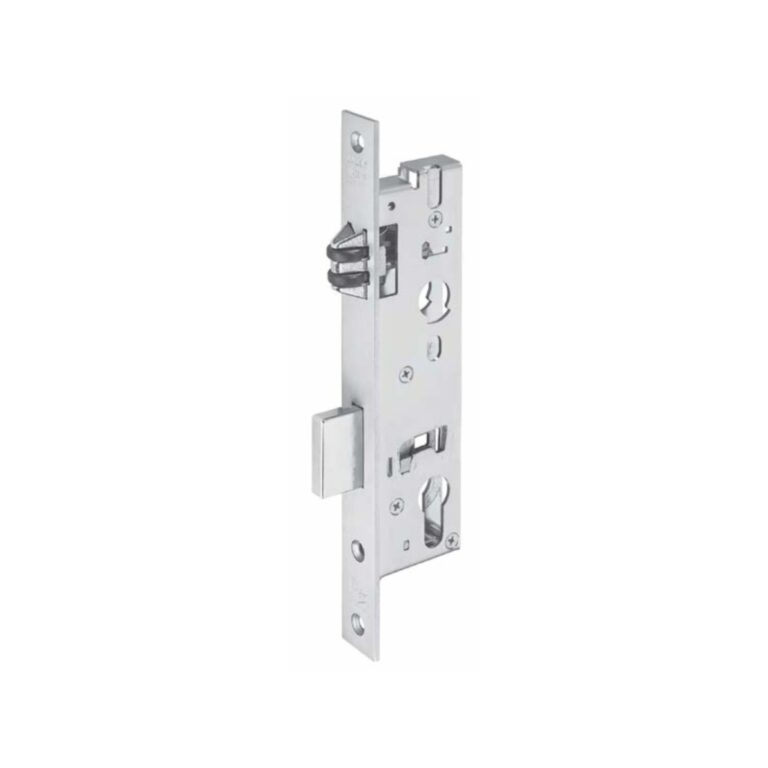

WILKA Lockcase 1452.55 Technical Features
- Suitable for Swing Aluminium Doors with Pull Handles
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Spring Made of Hardened Steel
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 30 mm
- Compatible with Profile Cylinders

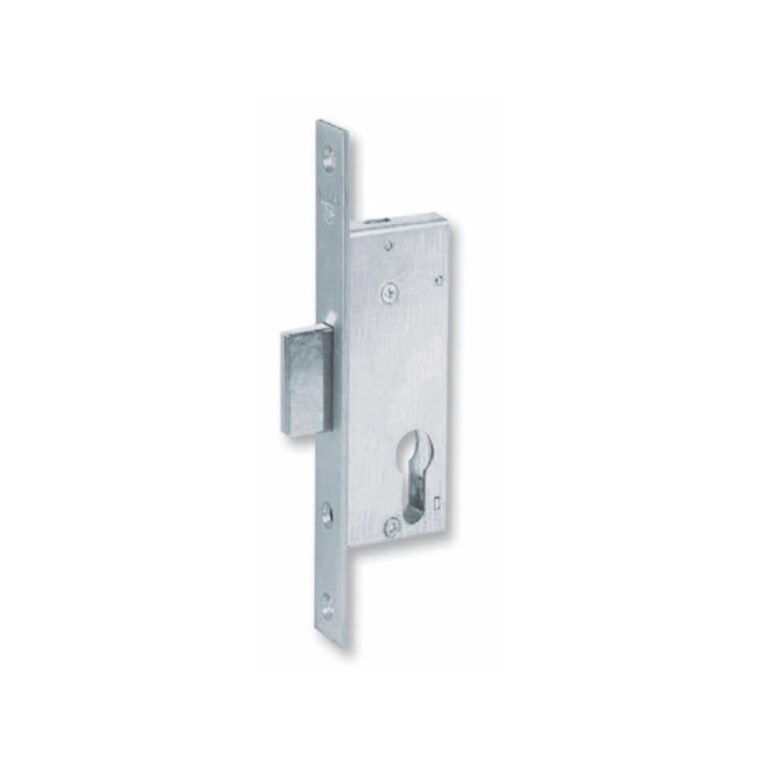

WILKA Lockcase 1439.30 Technical Features
- Suitable for Swing Aluminium Doors with Pull Handles
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 30 mm
- Compatible with Profile Cylinders

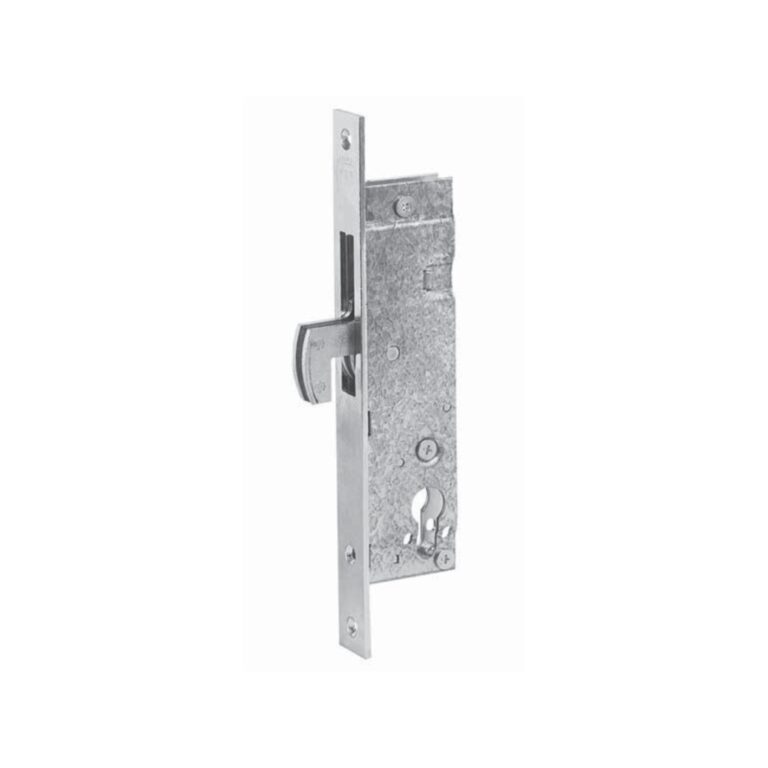

WILKA Lockcase 1436.30 Technical Features
- Suitable for Sliding Aluminium Doors
- Non Handed or Reversible
- Tested to DIN 18251 and EN 12209 Class 3
- Cycle Test: 200,000 Cycles
- Material: Stainless Steel SUS 304
- Finishing: Satin Stainless Steel, Polished Stainless Steel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Backset Dimension: 30 mm
- Compatible with Profile Cylinders

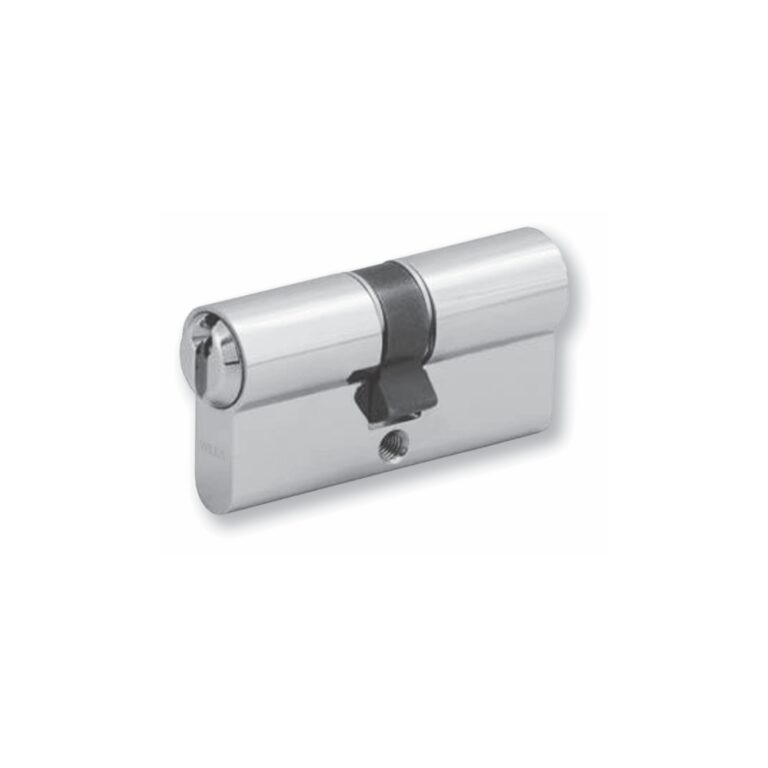

WILKA Cylinder 1400 Technical Features
- Operated by Keys from Both Sides
- Tested to DIN 18252 and EN 1303
- Cycle Test: 100,000 Cycles
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- 6 Security Pins
- 3 Silver-Nickel Keys
- Support Masterkey, Grand Masterkey and Great Grand Masterkey
- Length: 60 mm or 70 mm or 80 mm or Custom Length

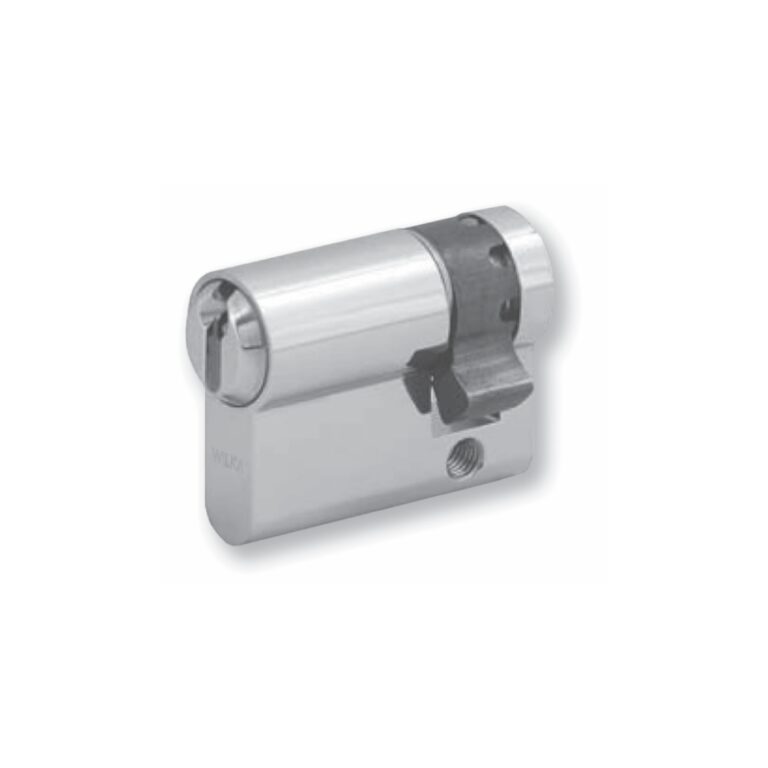

WILKA Cylinder 1410 Technical Features
- Operated by Keys from One Side Only
- Tested to DIN 18252 and EN 1303
- Cycle Test: 100,000 Cycles
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- 6 Security Pins
- 3 Silver-Nickel Keys
- Support Masterkey, Grand Masterkey and Great Grand Masterkey
- Length: 30 mm or 40 mm or 50 mm or Custom Length

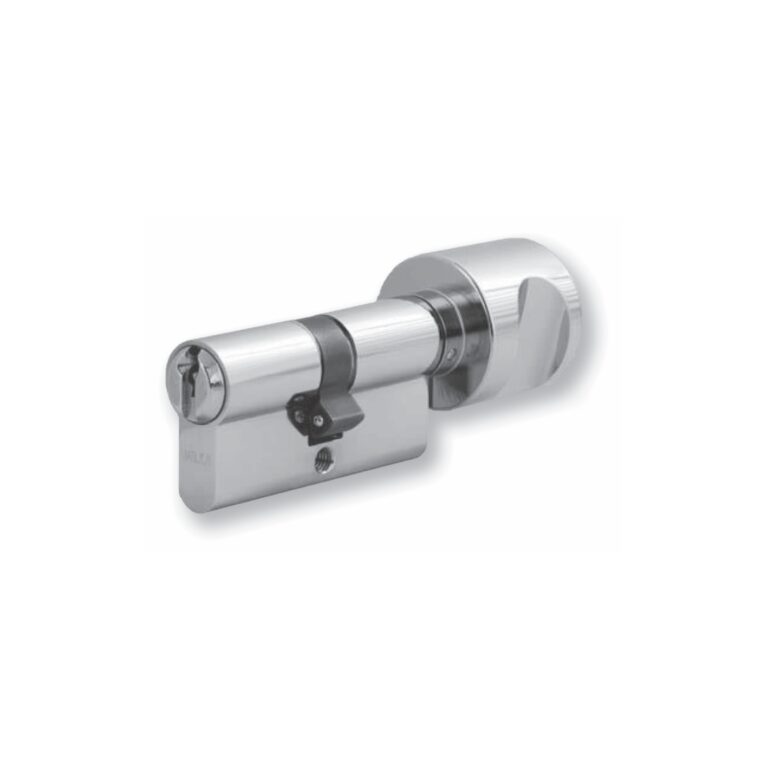

WILKA Cylinder 1405 Technical Features
- Operated by Keys from One Side and Thumbturn from the Other Side
- Tested to DIN 18252 and EN 1303
- Cycle Test: 100,000 Cycles
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- 6 Security Pins
- 3 Silver-Nickel Keys
- Support Masterkey, Grand Masterkey and Great Grand Masterkey
- Length: 60 mm or 70 mm or 80 mm or Custom Length
WILKA Cylinder 1478 Technical Features
- Operated by Keys from Both Sides Simultaneously
- Tested to DIN 18252 and EN 1303
- Cycle Test: 100,000 Cycles
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- 6 Security Pins
- 3 Silver-Nickel Keys
- Support Masterkey, Grand Masterkey and Great Grand Masterkey
- Length: 60 mm or 70 mm or 80 mm or Custom Length

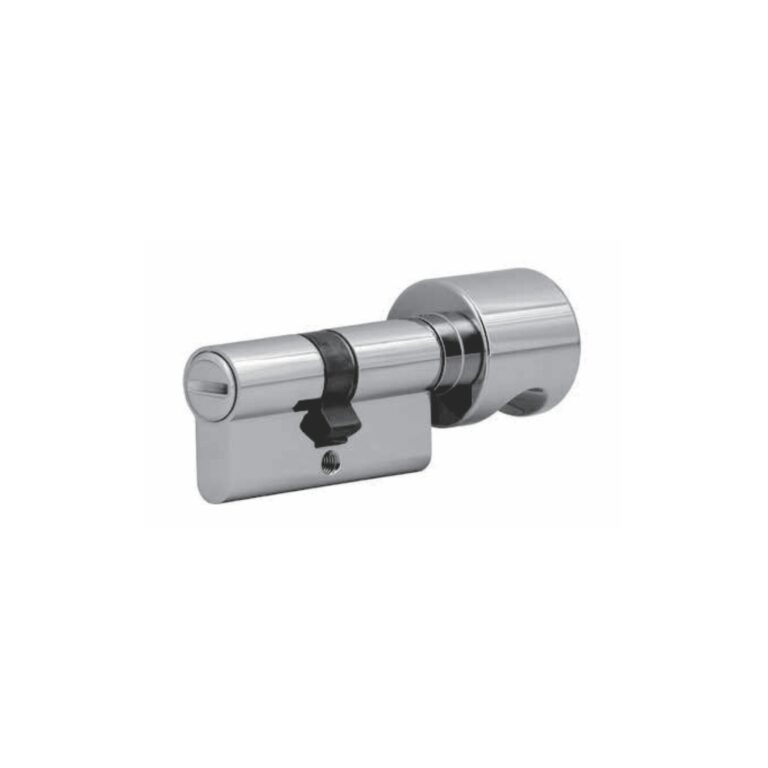

WILKA Cylinder 1477 Technical Features
- Operated by Emergency Coin from One Side and Thumbturn from the Other Side
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Length: 60 mm or 70 mm or 80 mm or Custom Length

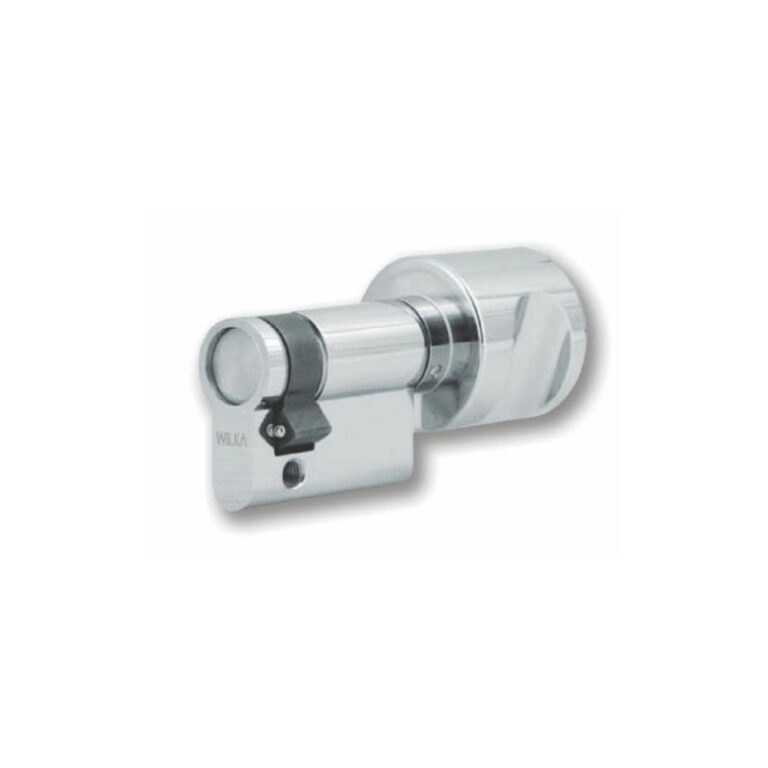

WILKA Cylinder 1413 Technical Features
- Operated by Thumbturn from One Side Only
- Material: Brass
- Finishing: Satin Nickel, Polished Nickel, Satin Black, Satin Brass, Polished Brass or Custom Finishing
- Length: 30 mm or 40 mm or 50 mm or Custom Length

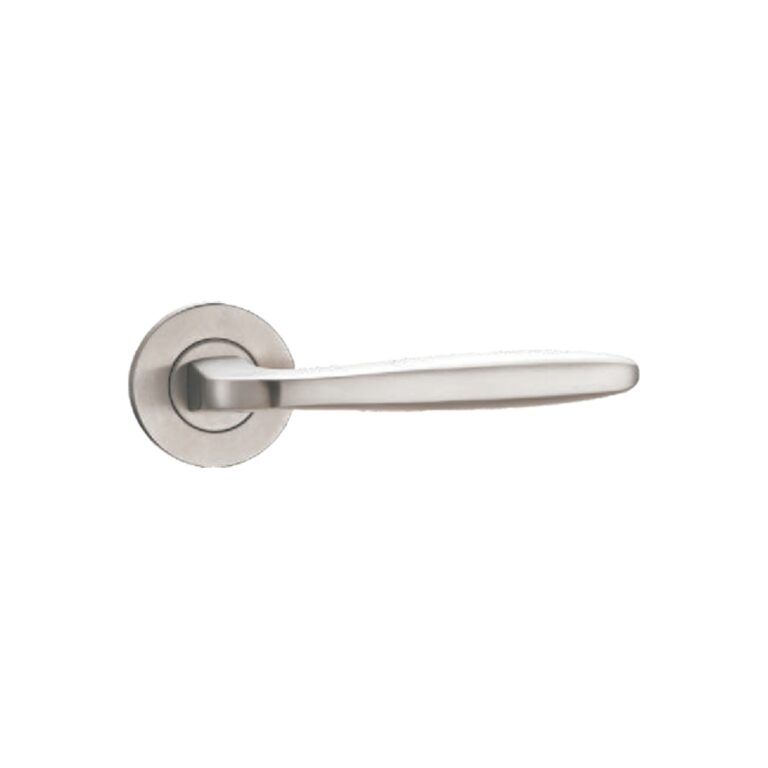

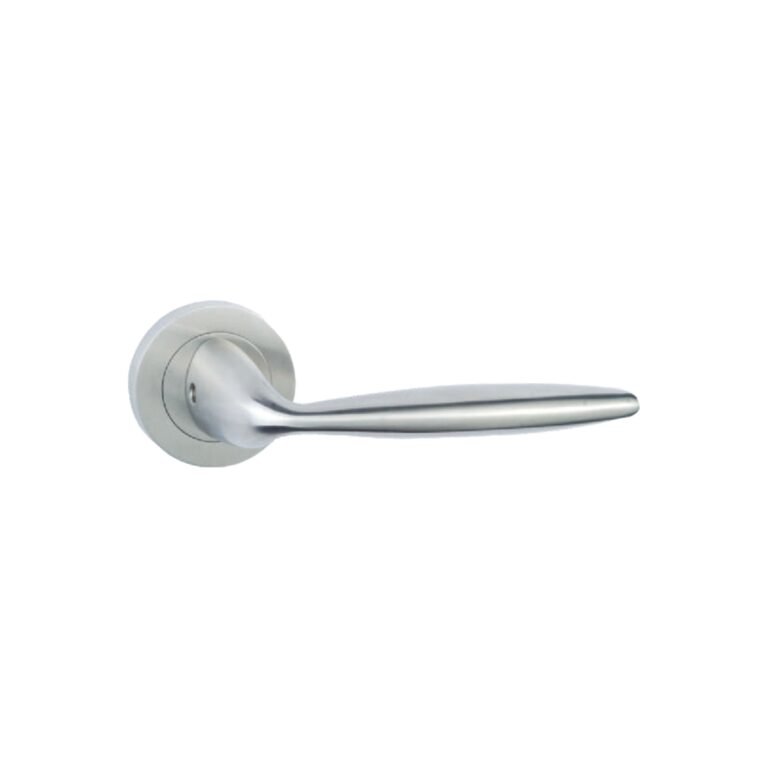

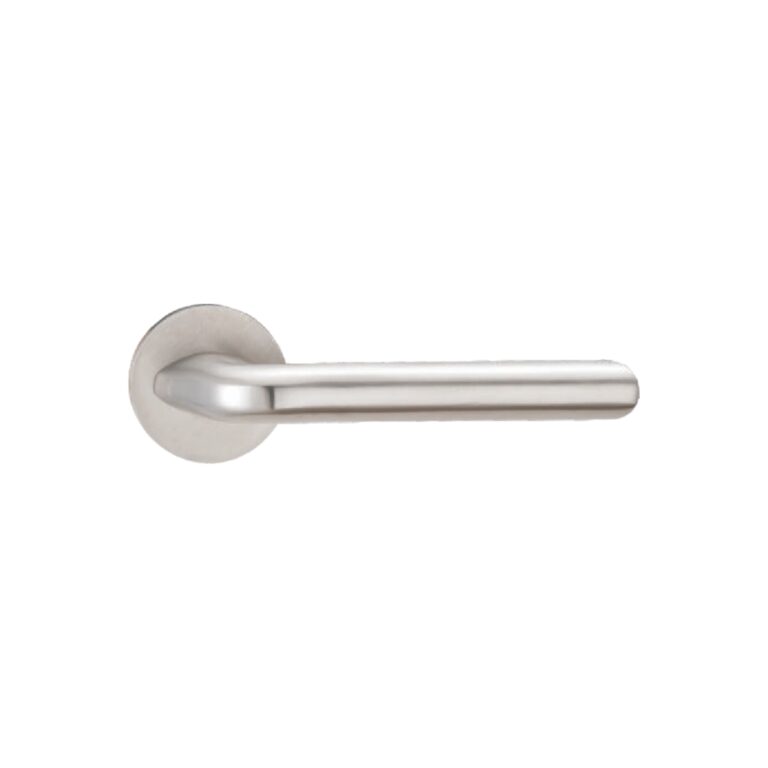

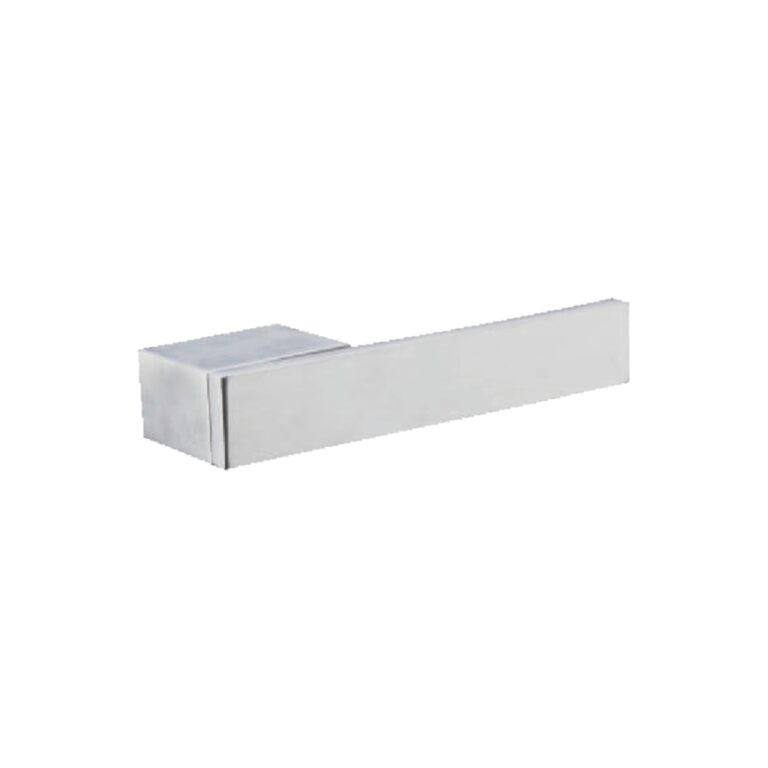

Lever Handle Technical Features
- Material: Stainless Steel SUS 304
- Finish: Satin or Polished Stainless Steel
- Fixing System with Through Bolt for Secure and Durable Installation
- Premium Threaded Cutting Ecutcheons
